Application：

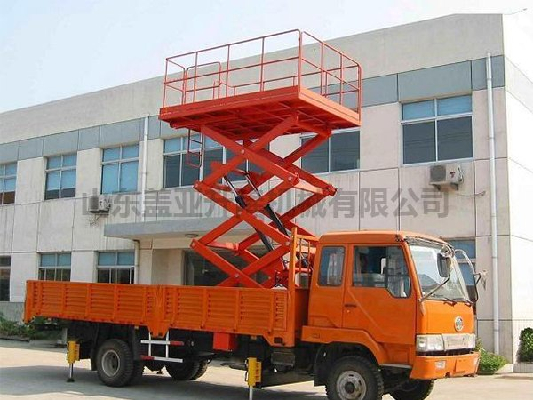

Vehicle mounted aerial work platform is widely used in municipal construction and maintenance, street lighting, highway facilities maintenance, installation of monitoring facilities, engineering repair, landscaping and other industries.

Knowledge of vehicle lift:

Usage method：

1, vehicle mounted lifting platform (hereinafter referred to as the platform) in the factory have been tested and debugging, the technical indicators have reached the design requirements, the use of hydraulic, electrical systems do not need to adjust.

2, the platform should be carefully checked before the use of hydraulic, electrical system without leakage or exposed phenomenon before use.

3, the platform is in use, the four legs should firmly support the necessary on solid ground when using sleepers.

4, the platform air operation 1-3 times before the load operation.

5, the focus of the load should be at the center of the working table.

6, protective railing at both ends of the door should be closed off the door can be locked behind the door.

7, hydraulic control system

Working process:

Start the motor start switch, motor, gear pump oil, cylinder out, lifting platform;

To be up to the need to work, according to the motor stop button, the platform to stop the lift, you can work. Drop when the electromagnet is turned on

Button, at this point, the oil tank back to the oil connection, the platform depends on the weight down, to be reduced to the original position, the closing electromagnet (power off).
